Best Radiators for Bay Windows: Sizing, Pipework and Column Options
Bay windows are a beautiful feature in many UK homes, bringing in natural light and creating extra space in living rooms, bedrooms and dining areas. However, choosing the right radiator for a bay window takes a little more planning than for a standard wall.
Limited space beneath the windowsill, angled walls, existing pipework and heat loss through glazing can all influence your decision. The right radiator needs to fit comfortably into the available space while providing enough warmth to keep the room comfortable.
Whether you prefer a traditional column radiator or a taller design on an adjoining wall, several options are worth considering.
In this guide, we look at the best radiators for bay windows, how to choose the right size, what to check before ordering, and which styles could work well in your home.
Why Can Choosing a Radiator for a Bay Window Be Tricky?
Bay windows often have a different layout from the rest of the room. Some feature a wide central window with angled sections on either side, while others have a curved shape or a low windowsill.
These features can affect where a radiator can be installed.
Here are a few things to consider:
- Limited space: The area beneath the window may not be wide or tall enough for every radiator.
- Window height: A low sill can restrict the height of a horizontal radiator.
- Heat loss: Large glazed areas can increase heat loss, particularly in older homes with less efficient windows.
- Pipework: Existing pipes may not line up with the connections on your new radiator.
- Furniture and curtains: Sofas, window seats and long curtains can affect radiator placement and heat circulation.
The key is to assess the available space and the room’s heating requirements before choosing a design. A radiator that looks right is only a good choice if it also provides sufficient heat.

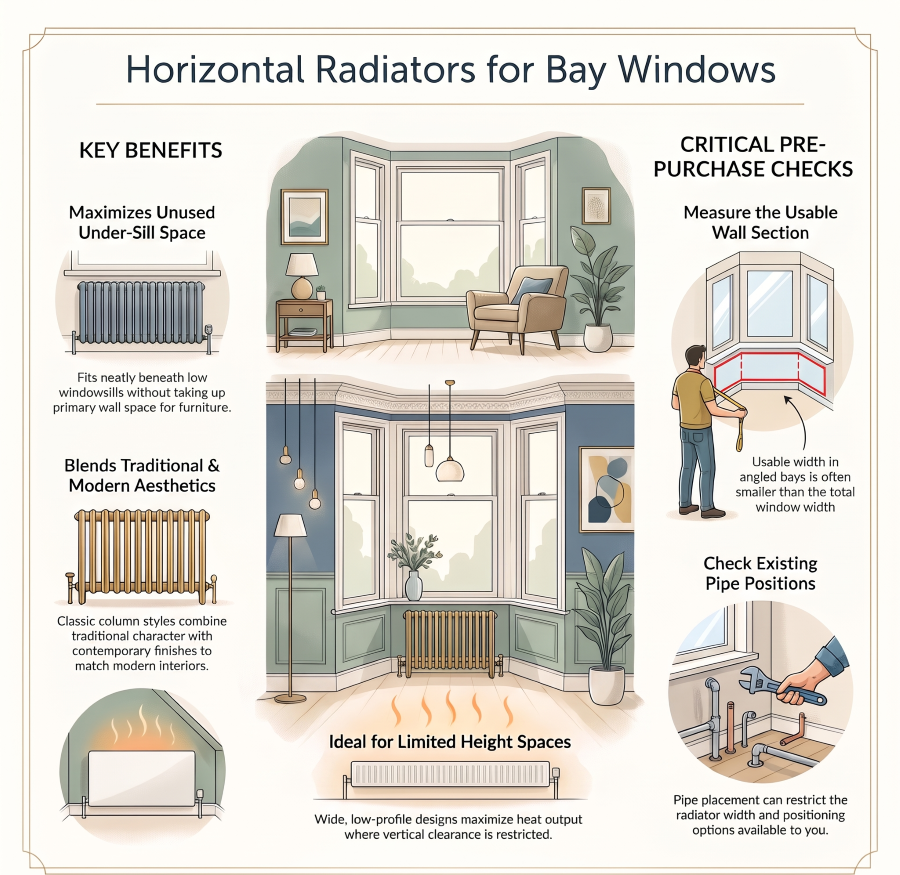

Horizontal Radiators for Bay Windows
A horizontal radiator is often a practical choice for a bay window, especially when there is enough room beneath the windowsill.
Its wider, lower profile makes use of space that might otherwise remain empty. It can also sit neatly beneath a window without taking up valuable wall space elsewhere in the room.
Horizontal column radiators are particularly worth considering if you want a radiator that combines traditional styling with a choice of contemporary finishes.
Why choose a horizontal column radiator?
A horizontal column radiator may suit your bay window if:
- There is enough width beneath the windowsill.
- The available height is limited.
- You want to keep other walls free for furniture.
- You like the appearance of traditional column radiators.
- You want a radiator finish that complements your interior.
Before buying, measure the actual wall section where the radiator will be installed. In an angled bay, the usable width may be smaller than you expect, and the position of the pipes can further restrict your options.
Aura 2 Column Horizontal Radiator
The Aura 2 Column Horizontal Radiator is an option for homeowners looking for a traditional column design with a personalised finish.
The range is available in six sizes, all 600mm high, with widths ranging from 785mm to 1415mm. Published heat outputs range from 2733 to 4982 BTU at ΔT50.
Its custom RAL colour options make it possible to coordinate the radiator with your wall colour, window frames or wider decorating scheme.
Explore the Aura 2 Column Horizontal Radiator range to compare the available sizes and specifications.

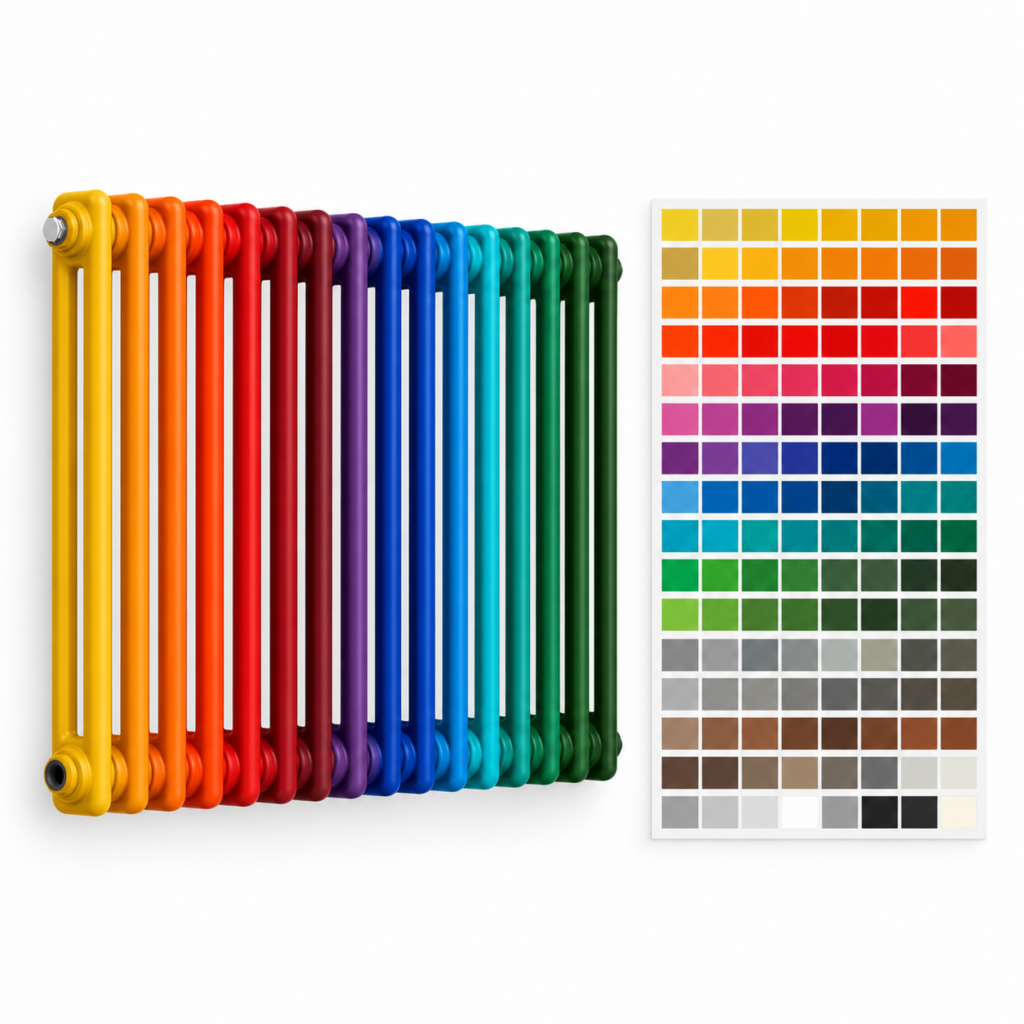

2 Column Horizontal Radiators RAL Colours
In stock
Aura 2 Column Horizontal Radiator 600mm x 1010mm Matt Black
In stock
- 🔥 BTU Output: 3535
- ⚡ Watt Output: 989
- 🛡️ Warranty: 5 Years
Aura 2 Column Horizontal Radiator 600mm x 1415mm Anthracite
In stock
- 🔥 BTU Output: 4982
- ⚡ Watt Output: 1460
- 🛡️ Warranty: 5 Years
Aura 2 Column Horizontal Radiator 600mm x 785mm Matt Black
In stock
- 🔥 BTU Output: 2733
- ⚡ Watt Output: 1326
- 🛡️ Warranty: 5 Years
Aura 3 Column Horizontal Radiator
If you prefer a three-column design, the Aura 3 Column Horizontal Radiator offers another option for a bay window installation.
The range has seven sizes, all 600mm high, with widths from 605mm to 1100mm. Published heat outputs range from 2583 to 4766 BTU at ΔT50.
Made from mild steel for wet central heating systems, the radiator is available in custom RAL colours.
Compare the Aura 3 Column Horizontal Radiator range to find a size that suits your available space and heating requirements.
Remember that the right choice depends on the output of the individual model, not simply the number of columns.

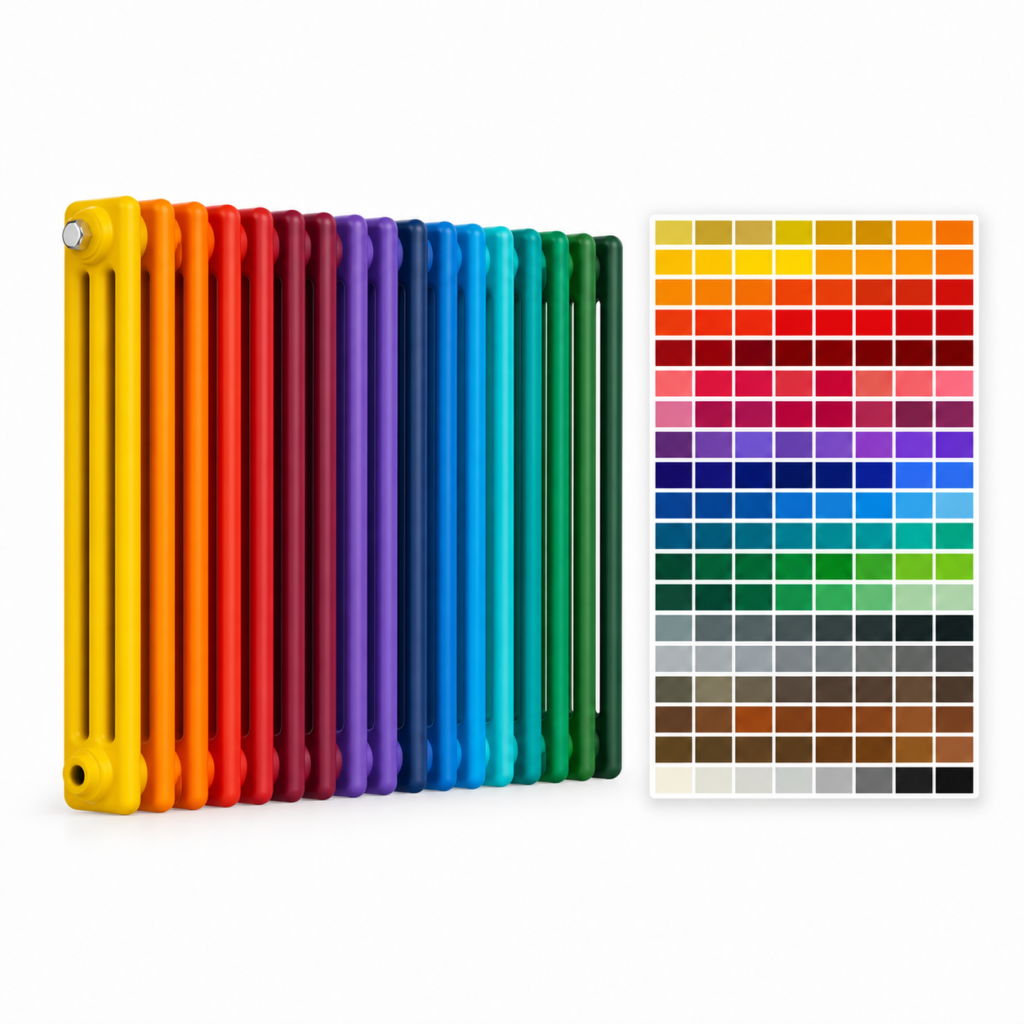

3 Column Horizontal Radiators RAL Colours
In stock

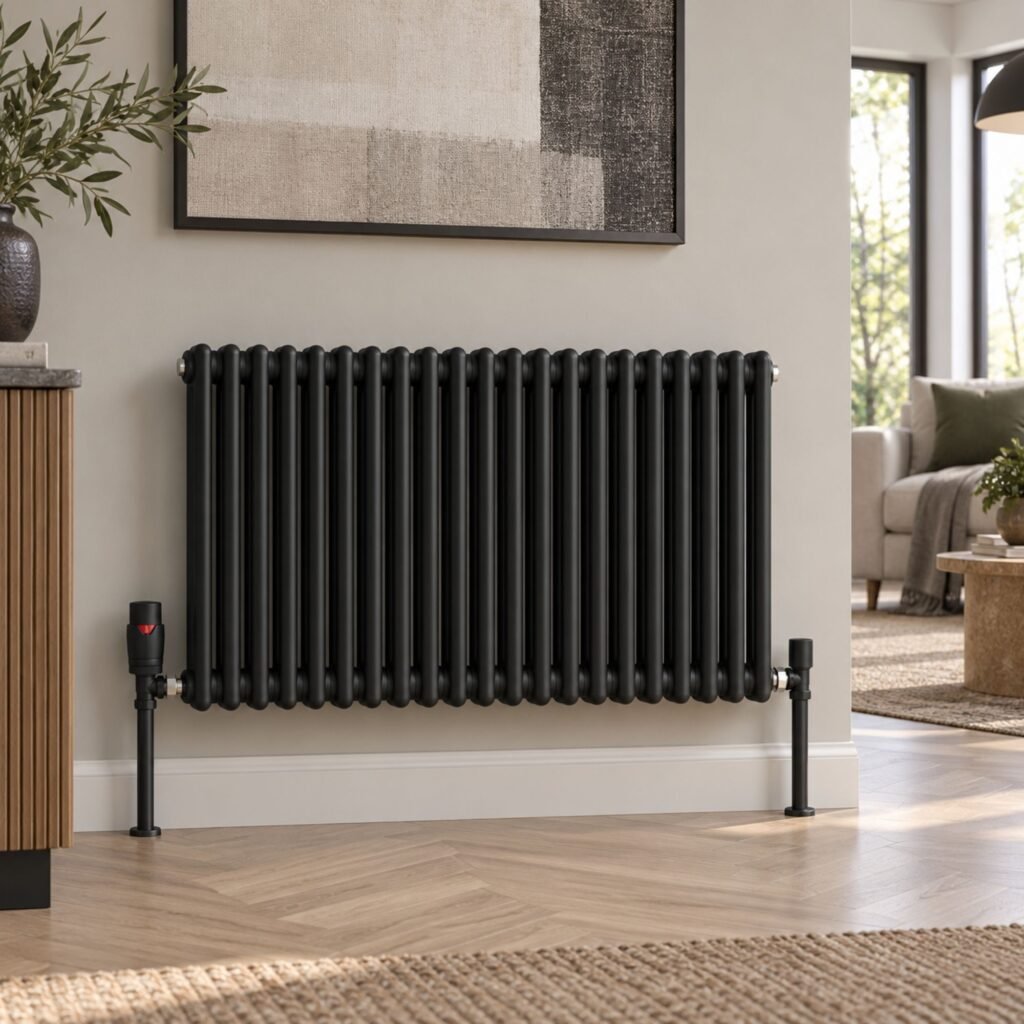

Aura 3 Column Horizontal Radiator 600mm x 1010mm Matt Black
In stock
- 🔥 BTU Output: 4367
- ⚡ Watt Output: 1280
- 🛡️ Warranty: 5 Years
Aura 3 Column Horizontal Radiator 600mm x 1010mm White
In stock
- 🔥 BTU Output: 4367
- ⚡ Watt Output: 1280
- 🛡️ Warranty: 5 Years

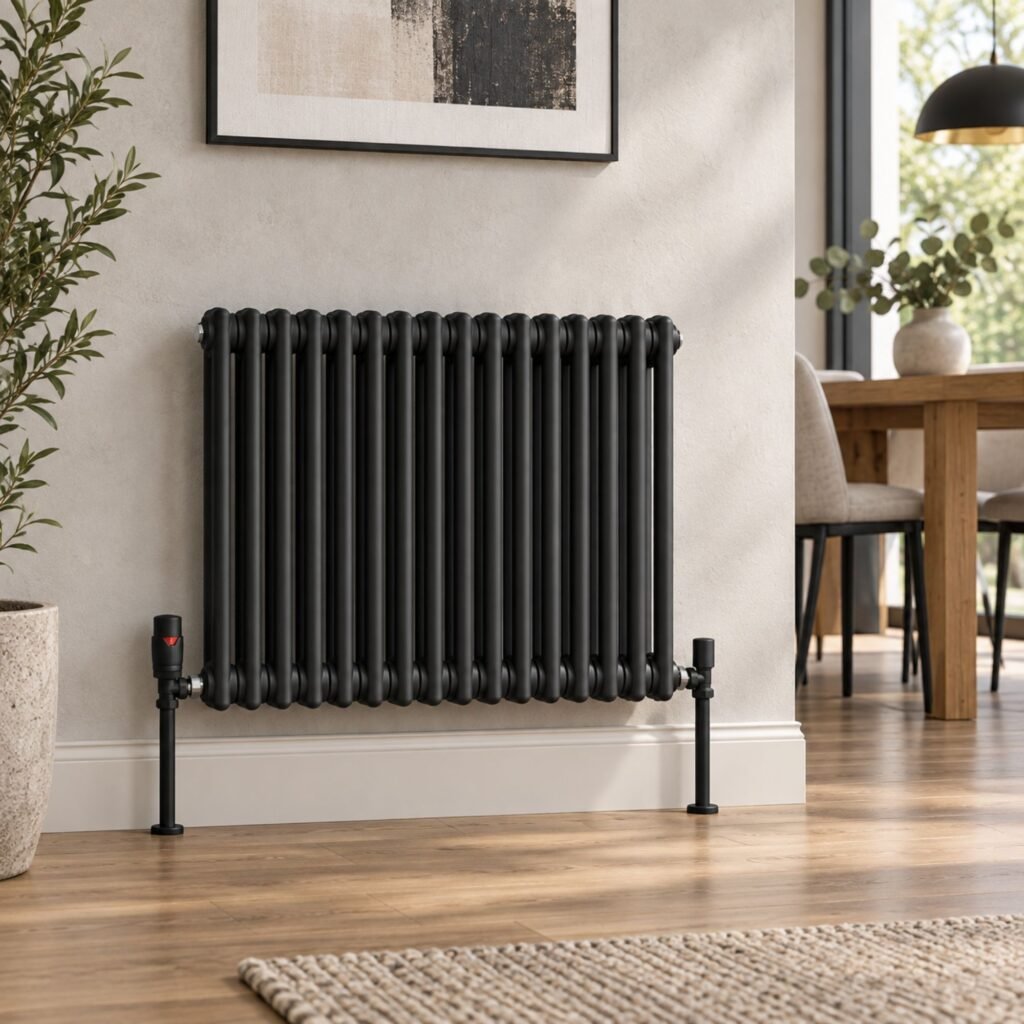

Aura 3 Column Horizontal Radiator 600mm x 785mm Matt Black
In stock
- 🔥 BTU Output: 3374
- ⚡ Watt Output: 989
- 🛡️ Warranty: 5 Years
Vertical Radiators for Bay Windows
What if there is not enough room beneath your bay window for a suitable horizontal radiator?
A vertical radiator may be a good alternative. Its taller, narrower shape can make use of an adjoining wall where a wide radiator would be difficult to accommodate.
This can be useful in living rooms where the bay window area is occupied by a sofa or window seat, or where the windowsill sits close to the floor.
When is a vertical radiator a good choice?
Consider a vertical radiator if:
- The space beneath the window is too narrow for the required horizontal model.
- There is a suitable wall beside the bay window.
- You want to leave the area beneath the window clear.
- You prefer a taller radiator as part of your room’s design.
However, a vertical radiator is not automatically better for heating a bay window room. Its heat output still needs to match the room’s requirements, and the installation position should allow warmth to circulate effectively.
Check the wall dimensions, radiator depth and pipe connections before making your decision.
Aura 3 Column Vertical Radiator
The Aura 3 Column Vertical Radiator is worth considering if you want a traditional column appearance in a taller format.
The range is 1800mm high and available in four widths: 290mm, 335mm, 425mm and 515mm. Published heat outputs range from 3392 to 6008 BTU at ΔT50.
Its custom RAL colour options offer flexibility when coordinating the radiator with the rest of your interior.
View the Aura 3 Column Vertical Radiator range to compare sizes and heat outputs.
For more help deciding between the two orientations, read our guide to horizontal vs vertical designer radiators.

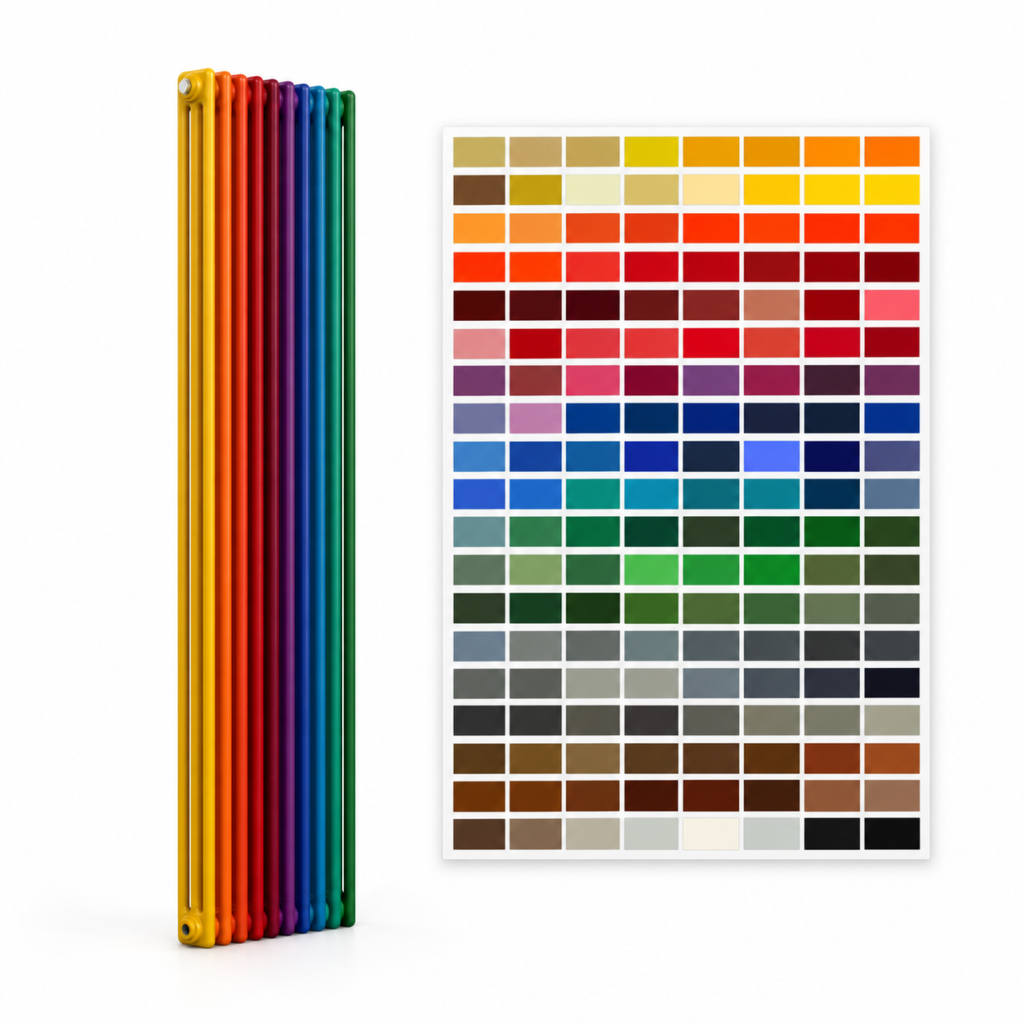

3 Column Vertical Radiators RAL Colours
In stock

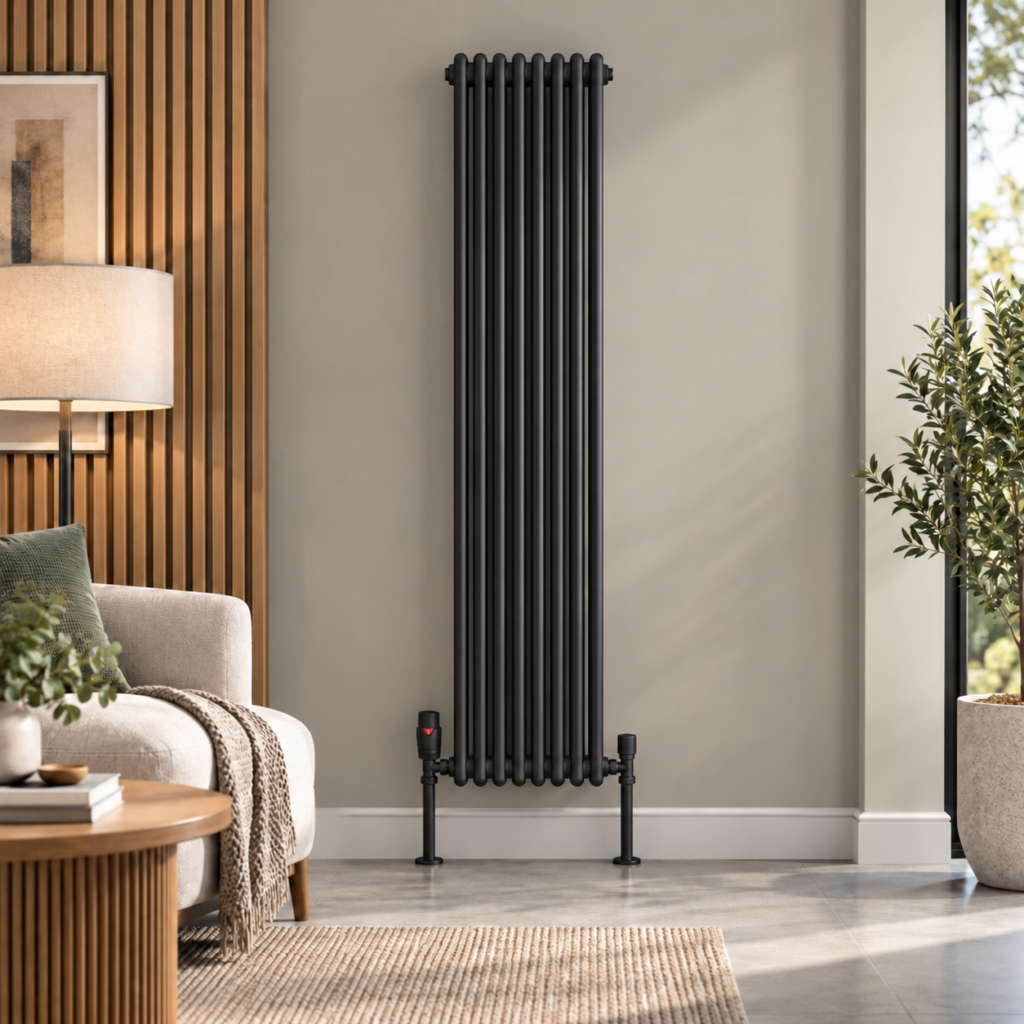

Aura 3 Column Vertical Radiator 1800mm x 380mm Matt Black
In stock
- 🔥 BTU Output: 4524
- ⚡ Watt Output: 1326
- 🛡️ Warranty: 5 Years
Aura 3 Column Vertical Radiator 1800mm x 425mm White
In stock
- 🔥 BTU Output: 5087
- ⚡ Watt Output: 1491
- 🛡️ Warranty: 5 Years

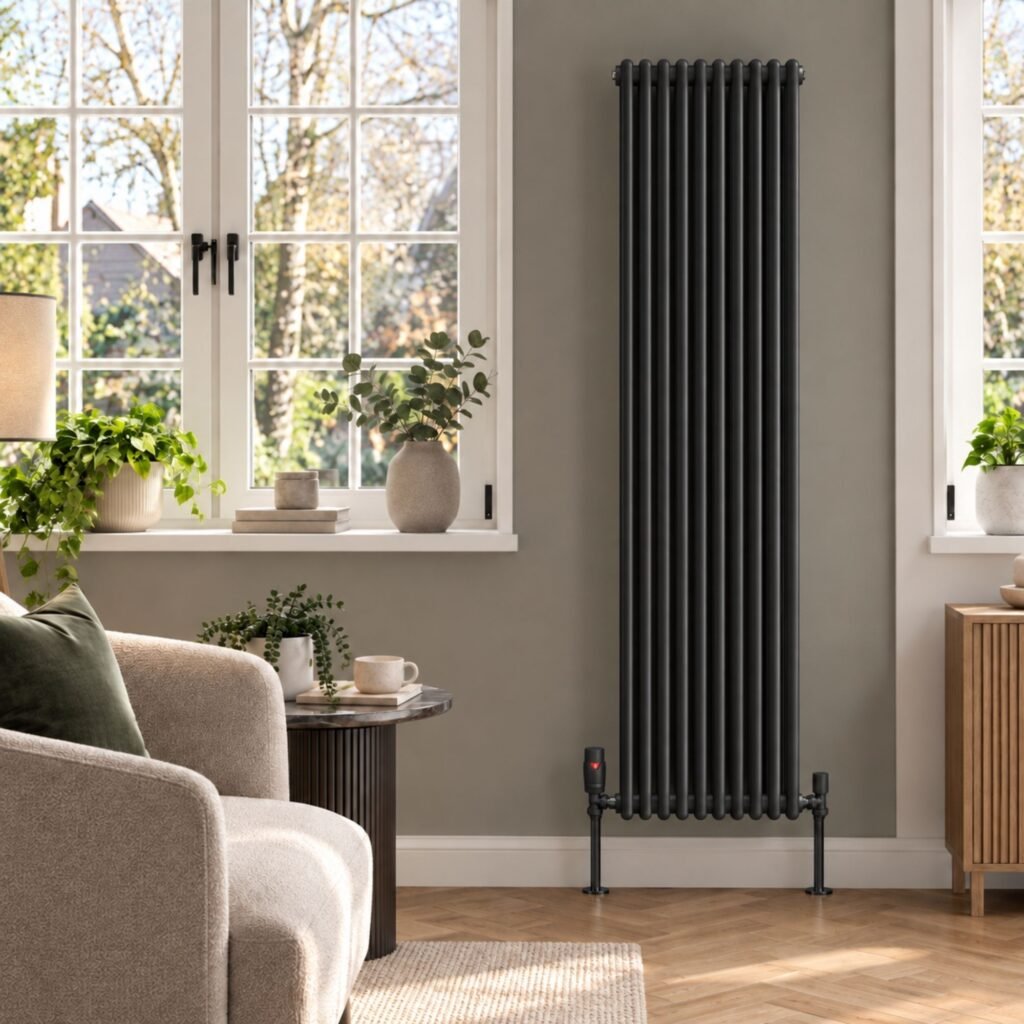

Aura 3 Column Vertical Radiator 1800mm x 470mm Matt Black
In stock
- 🔥 BTU Output: 5654
- ⚡ Watt Output: 1657
- 🛡️ Warranty: 5 Years

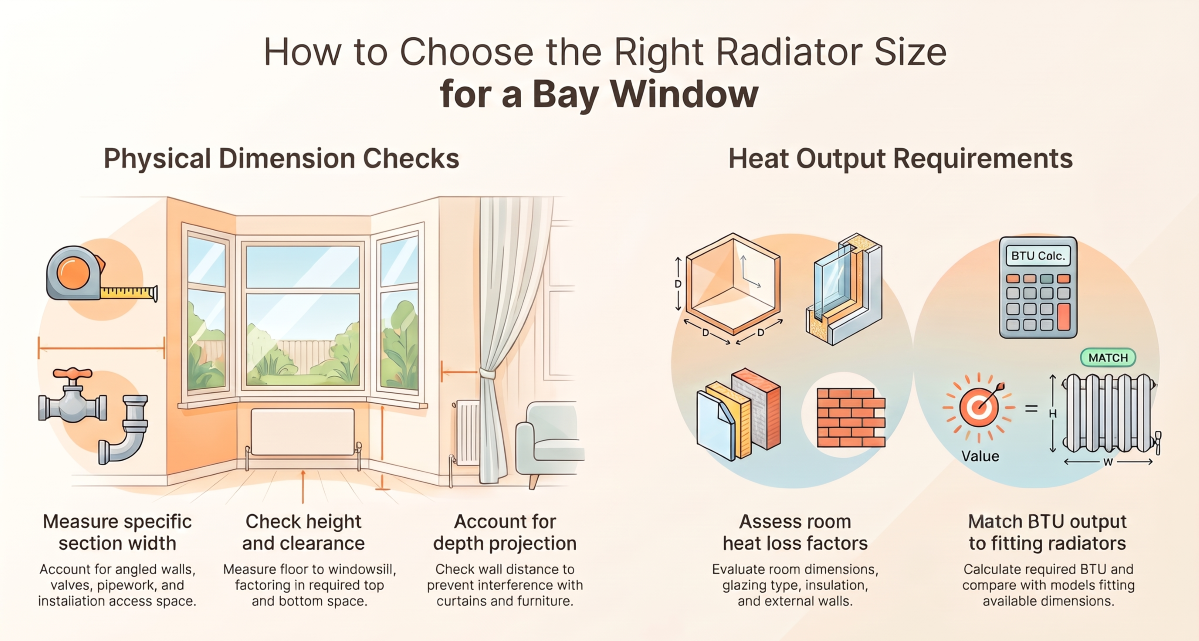

How to Choose the Right Radiator Size for a Bay Window
Getting the size right involves more than measuring the width beneath the window. You also need to consider the height, depth, and amount of heat required to warm the room.
Measure the available width.
Measure the wall section where you intend to install the radiator. If your bay window has angled sides, check the dimensions of the specific section rather than relying on the overall width of the window.
Allow enough room for the radiator, valves, pipework,k and installation access.
Check the available height
Measure from the floor to the underside of the windowsill. Compare this measurement with the radiator’s overall height and the clearances specified by its manufacturer.
Do not assume that a radiator will fit simply because its listed height is smaller than the distance to the windowsill. You also need to account for the space required above and below the unit.
Consider the depth
Radiator depth is particularly important in a bay window, where space can be limited.
Check how far the radiator will project from the wall, including the space required for valves and pipe connections. This helps you avoid a radiator that interferes with curtains, furniture, or movement around the room.
Calculate the required heat output
A radiator needs to provide enough heat to compensate for the room’s heat loss.
Factors that influence the required output include:
- Room length, width, and ceiling height.
- The size and type of windows.
- Insulation levels.
- The number of external walls.
- The room’s position within the property.
- The operating temperature of the heating system.
A room with large bay windows and older glazing may require more heating capacity than a similarly sized, well-insulated room.
Use The Radiator Hub’s BTU calculator to estimate the room’s heating requirement. For rooms with extensive glazing, unusual layouts, or poor insulation, a more detailed heat-loss calculation may be appropriate.
Once you have an estimated BTU requirement, compare it with the output of individual radiators that fit your available space.
Check Radiator Pipe Centres Before Ordering
Pipework is one of the most important details to check when replacing an existing radiator.
Pipe centres refer to the distance between the centres of the radiator’s inlet and outlet connections. Measuring this distance helps you understand whether the new radiator’s connections will line up with the existing pipes.
In a bay window, the pipes may emerge from the floor or run along a wall at an angle. The connection positions on your chosen radiator may be different from those of the old model, even if the two radiators have similar dimensions.
Before ordering, check:
- The distance between the existing pipe centres.
- The connection positions on the new radiator.
- Whether the connections are underneath or at the sides.
- The type of valves required.
- Whether the existing pipework needs adjusting.
Do not assume that a new radiator will connect directly to the existing pipes just because it fits the same space.
Our guide to measuring radiator pipe centres before you buy explains what to measure and why it matters.
If you are unsure about the pipework, ask a qualified heating professional to check the installation before ordering.
Allow Space for Valves, Curtains and Furniture
A radiator may fit beneath a bay window but still be awkward to use if the surrounding space has not been considered.
Choose suitable radiator valves
Radiator valves need enough room to be installed and operated. This is particularly important where the radiator sits close to the angled sides of a bay window.
The type of valve you need will depend partly on where the pipes emerge and where the radiator connections are positioned.
The Aura column radiators discussed in this guide do not include valves, so remember to allow for these separately when planning your installation.
Browse The Radiator Hub’s radiator valves and accessories to explore the available options.
Keep curtains clear of the radiator
Long curtains can hang over a radiator if there is not enough clearance between the window and the radiator. This can restrict heat circulation and affect how effectively warmth spreads around the room.
Where possible, position curtains so they do not cover the radiator when it is operating. Always follow the manufacturer’s guidance on installation clearances.
Think about furniture placement
A radiator positioned behind a large sofa or tightly enclosed by furniture may not distribute heat as effectively as one with adequate surrounding space.
If you plan to place seating beneath the bay window, a vertical radiator on an adjoining wall may be worth considering. If the area is unobstructed, a horizontal model could be a better use of the available space.
For more advice, see our guide to where to put a column radiator.

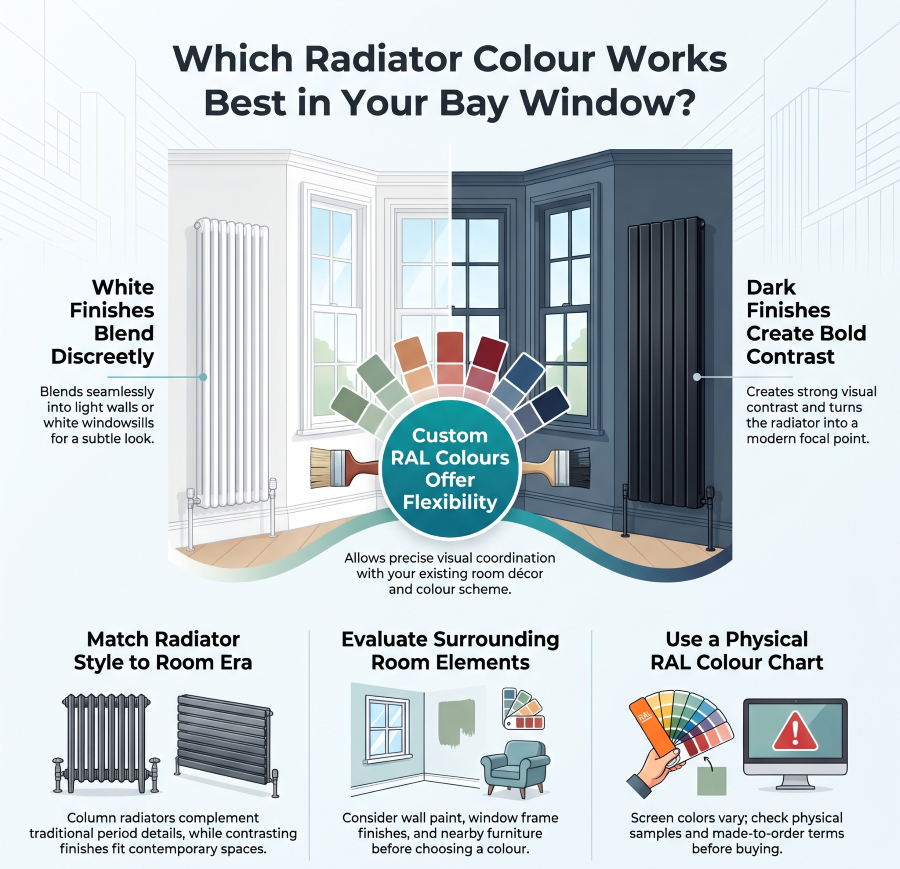

Which Radiator Colour Works Best in a Bay Window?
The finish you choose can make a noticeable difference to the overall appearance of the room.
A white radiator can blend into a light wall or sit discreetly beneath a white windowsill. Black and darker finishes can create contrast, while a custom RAL colour gives you more choice when coordinating the radiator with your existing décor.
In a traditional home, a column radiator can complement period features and decorative details. In a contemporary space, a contrasting finish can turn the radiator into a design feature.
There is no single colour that works best for every bay window. Consider your wall colour, window frames, furniture and the overall style of the room before making a decision.
If you choose a custom RAL finish, check the available colours and the relevant made-to-order terms before purchasing. A physical RAL colour chart is useful because colours displayed on screens may not accurately represent the finished product.
Common Mistakes to Avoid
A few simple checks can help you avoid problems when buying a radiator for a bay window.
Choosing by appearance alone: A radiator needs to provide sufficient heat as well as fit the room’s style. Check its output before buying.
Measuring the window instead of the wall: The width of the glass does not necessarily match the available installation space beneath it.
Ignoring pipe positions: Check pipe centres and connection locations to reduce the risk of unexpected plumbing adjustments.
Forgetting the radiator depth: Allow space for valves, curtains and nearby furniture.
Assuming all column radiators have the same output: Heat output varies according to the model, dimensions, column configuration and operating conditions.
Overlooking installation requirements: Check wall suitability, fixing points, and the manufacturer’s clearance guidance. Seek professional advice if the installation is complicated.
Frequently Asked Questions
What is the best radiator for a bay window?
The best radiator depends on the available space and the room’s heating requirements. A horizontal column radiator can work well beneath a wide windowsill, while a vertical radiator may be more suitable for an adjoining wall where width is limited.
Can I put a radiator directly beneath a bay window?
Yes, provided there is sufficient space for the radiator, valves and pipework and the installation meets the manufacturer’s requirements. Measure the available width, height and depth before choosing a model.
Should I choose a horizontal or vertical radiator for a bay window?
A horizontal radiator is worth considering when there is enough width beneath the windowsill. A vertical model may be a better fit if space is limited or you want to keep the area beneath the window free. Both options need to provide sufficient heat for the room.
How do I calculate the BTU needed for a bay window room?
The required output depends on the room’s dimensions, insulation, glazing, ceiling height and other heat-loss factors. A BTU calculator can provide an initial estimate, but rooms with large windows or unusual layouts may benefit from a detailed heat-loss calculation.
Do radiator pipe centres matter when replacing a radiator?
Yes. Pipe centres help determine whether the new radiator’s connections will line up with the existing pipes. Measure the current pipe positions and compare them with the new radiator’s specifications before ordering.
Are column radiators suitable for bay windows?
Yes. Horizontal column radiators can be suitable beneath bay windows when their dimensions and heat output meet the room’s requirements. Vertical column radiators are another option for adjoining walls where there is less available width.
Find the Right Radiator for Your Bay Window
Choosing the right radiator for a bay window means balancing appearance, available space, pipework, and heating performance. A horizontal column radiator may suit the area beneath the windowsill, while a vertical design can make better use of a narrow adjoining wall. The best option depends on your room layout and heating requirements.
Before buying, measure the installation space, check the pipe centres and compare the heat output of suitable models. You should also consider the radiator’s depth and the space available around nearby furniture and curtains.
If you want to explore alternatives to traditional column designs, browse our collection of designer radiators for contemporary styles that can complement different interiors. You could also explore our oval radiators for a different look or visit our living room radiators category for more ideas suited to your space.
For bay window rooms that receive plenty of natural light but may need additional warmth during colder months, our conservatory radiators collection is another option worth exploring, provided you choose a model with the appropriate heat output.
Visit The Radiator Hub to explore our collections and find a radiator that suits your home’s style and heating needs.
