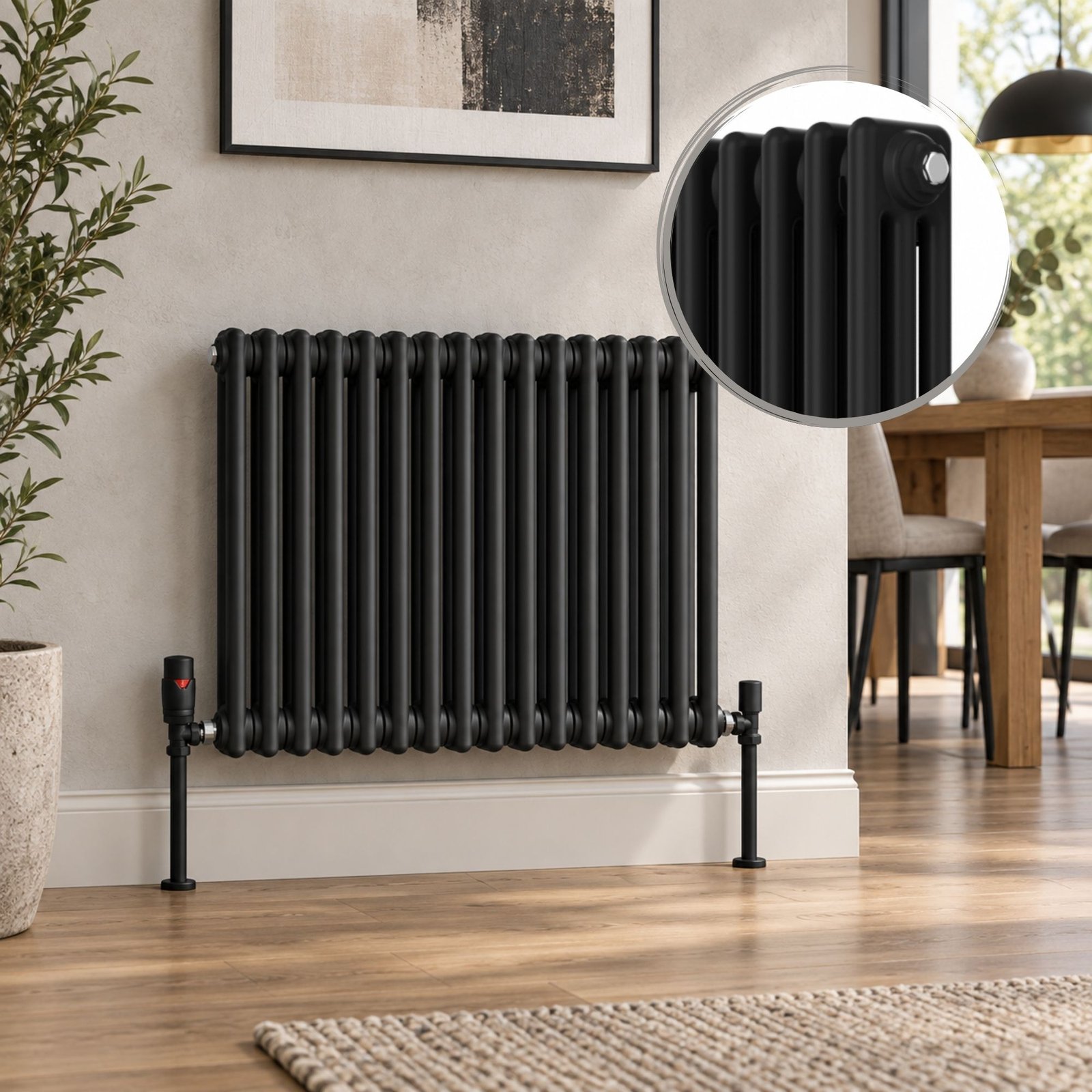

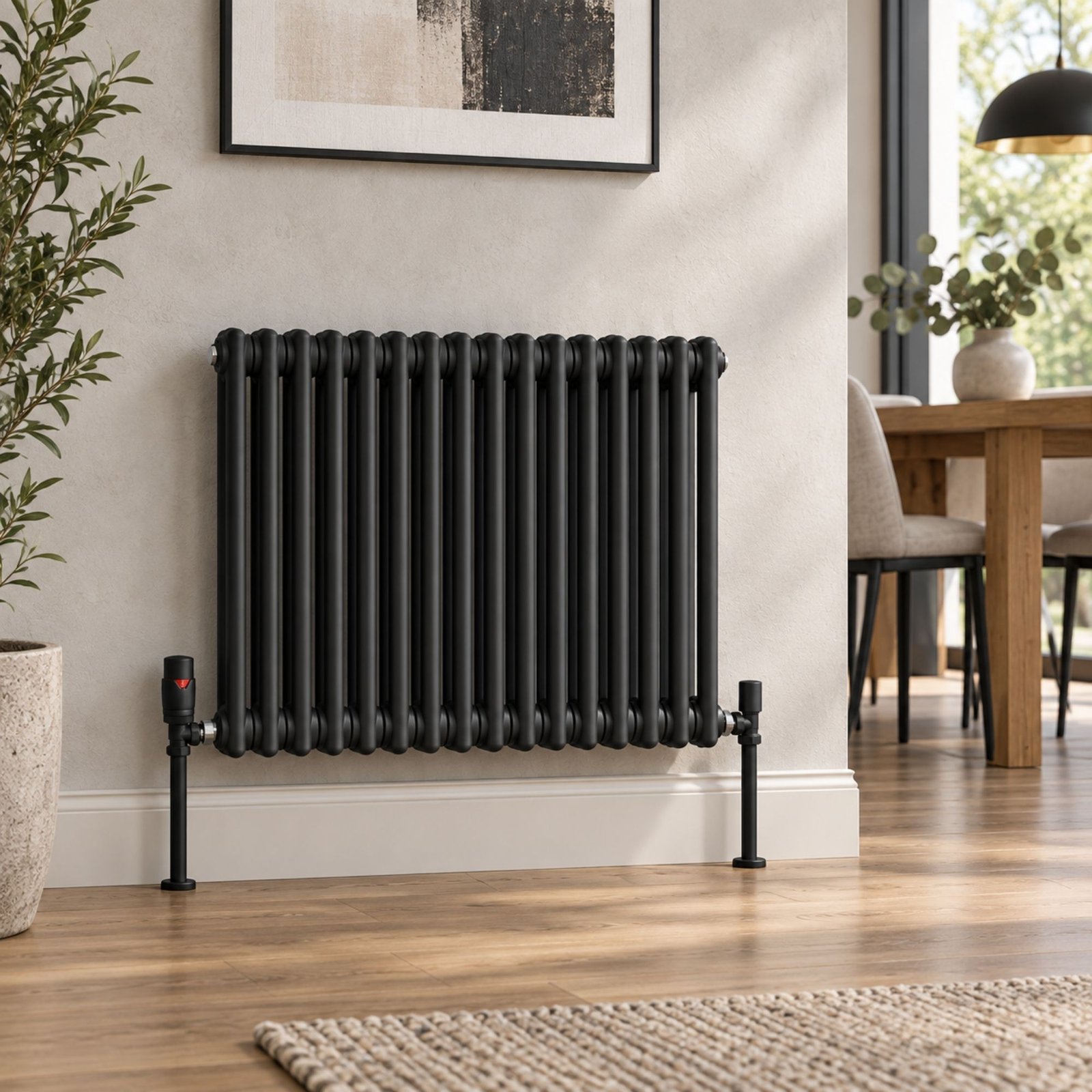

Aura 3 Column Horizontal Radiator 600mm x 785mm Matt Black
The 600 x 785mm Aura combines a compact horizontal body with triple-column character. Matt black gives the traditional form a defined outline, making it a design option for shorter wall positions. Compare the 2-column version at the same overall height and width, then choose using confirmed output and installation requirements as well as appearance.
£180.00 inc. VAT and Delivery
30 in stock
Why choose this radiator:
- High heat output suitable for UK homes
- Premium finish built to last
- Easy installation (plumber friendly)
- Fast UK delivery
- Trusted by 1,000+ customers

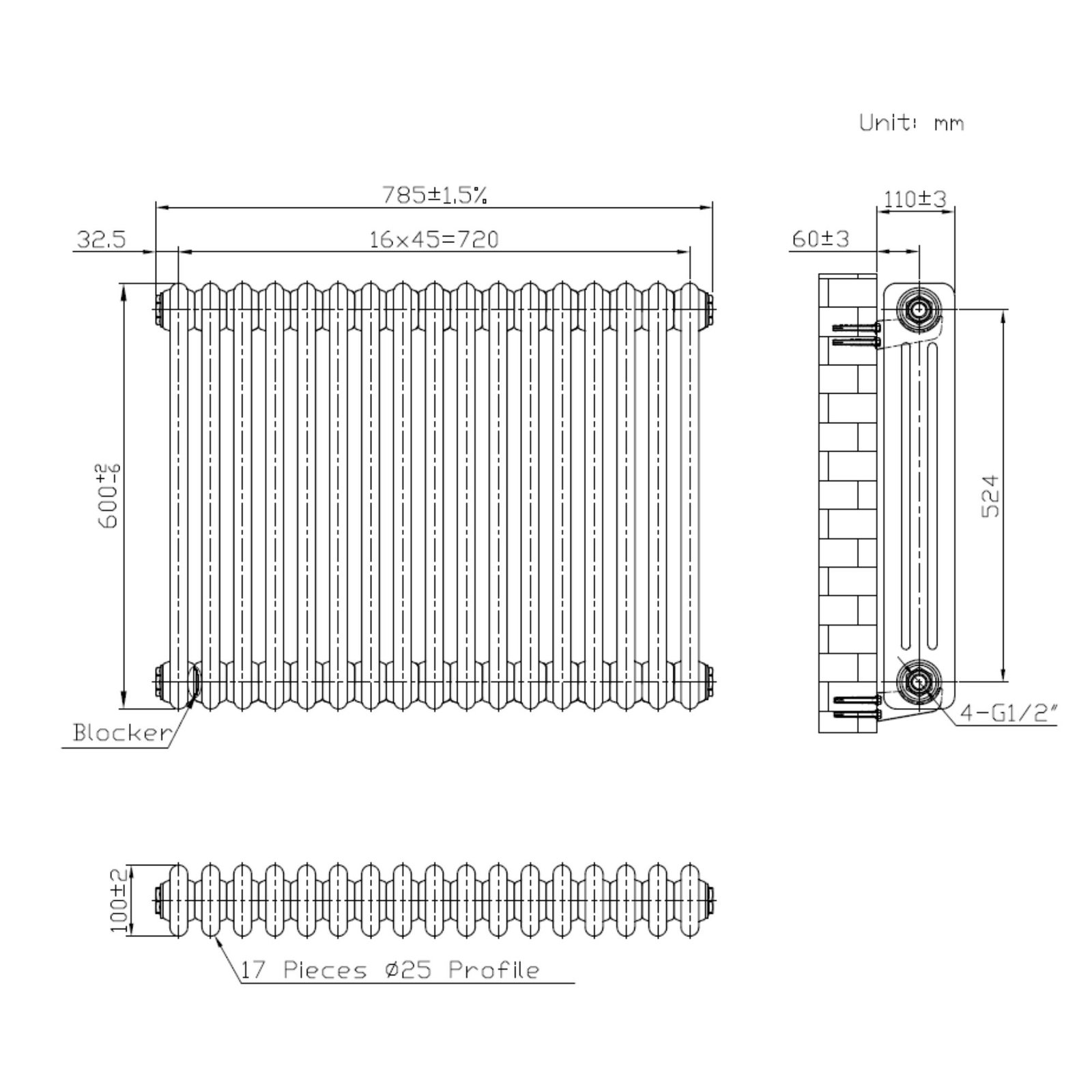

| Height | 600mm | Width | 785mm |
|---|---|---|---|
| Finish | Matt Black | Fuel Type | Central Heating |
| Material | Mild Steel | Orientation | Horizontal |
| BTU (T50) | 3374 | Watts (T50) | 989 |
| Depth Wall to Face (mm) | 114 | Pipe Centres (mm) | 865 |
| Wall to Pipe Centre (mm) | 63 | Height (mm) x Width (mm) | 600x785 |
| Warranty | 5 Years | Estimated Delivery: | 2 - 4 Working Days |
A compact body does not have to mean a plain radiator design. The Aura 3 Column Horizontal Radiator 600mm x 785mm Matt Black brings a triple-column profile to the shortest width in this horizontal range, creating a detailed feature within a modest wall run.
This model shares its stated height and width with the corresponding 2-column Aura, but its column arrangement is different. Comparing the two is useful when you want the same overall body proportions while exploring a different profile. Matt black highlights the traditional shape and can be repeated in nearby handles or lighting. Decide on the exact construction using confirmed heating and installation details, rather than assuming matching body dimensions make the models interchangeable.
Supporting your column radiator
We advise buying compatible 3-column feet alongside the radiator. They help support its weight and ease the strain on the wall, with the required wall restraint fitted in line with the instructions.
Choosing the size
Use the confirmed heat output and a room heat-loss calculation to choose the radiator; body dimensions alone do not establish heating capacity. This mild steel central-heating model carries a 5-year warranty, subject to terms.
Radiator Valves: Not included. Please check our Radiator Valve Buying Guide to select suitable valves.
If you have any further queries about this product, please call us on 01257 452 879.
Other sizes and finishes
Explore the Aura column radiator range for 600mm-high models in 785mm, 1010mm and 1190mm widths, with 2-column and 3-column designs. We also offer similar sizes in different finishes. Browse the range for the currently available combinations or ask us to help match the size and finish to your room.
- 785mm-wide horizontal body with a triple-column profile
- 600mm height for compact wall-layout planning
- Same body height and width as the 2-column alternative
- Matt black gives traditional detailing a defined outline
- Mild steel radiator for a central-heating circuit
- 5-year warranty subject to conditions
- Matching 3-column feet advised alongside the radiator
- 1010mm and 1190mm widths extend the same design family
Q1. What is a 600 x 785mm 3-column radiator?
A1. The 3-column description refers to the radiator’s column arrangement through its depth, not 3 sections across its width. This Aura measures 600mm high x 785mm wide.
Q2. How does it differ from the 785mm 2-column Aura?
A2. The Aura range includes Aura 600mm-high horizontal models in 785mm, 1010mm and 1190mm widths, in both 2-column and 3-column versions. This listing is specifically the 3-column, 785mm-wide model; compare verified outputs and mounting dimensions before selecting.
Q3. What feet match the triple-column horizontal design?
A3. We advise buying matching 3-column radiator feet to help support the radiator’s weight and reduce strain on the wall. Confirm the feet suit this exact Aura model and follow the installation instructions for wall restraint.
Q4. Can this compact Aura be the only radiator in a room?
A4. The radiator body measures 600mm high x 785mm wide. Allow additional space for the selected valves, connections, mounting clearances and access. For a position beneath a window, check the sill height and mounting allowance.
Q5. Can it be mounted in a vertical position instead?
A5. This product is a horizontal radiator. Install it in its specified orientation rather than rotating it; choose a model designed for the alternative orientation.
Q6. What should an installer check before replacing my radiator?
A6. A replacement needs more than matching overall dimensions. Ask your installer to compare the connection positions, valve layout, wall projection and mounting points with the existing installation before ordering this 600mm x 785mm model.
Which Valves do I need?
Pipework coming up from the floor + radiator connections on the side = Angled Valves Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.
Pipework coming up from the floor + radiator connections on the underneath side = Straight Valves. Best suited for pipework exiting from your floor or flexi-pipe up from your skirting board.
Pipework coming out from the wall + radiator connections on the side = Corner Valves (recommended) or Angled Valves If your pipework exits the wall the travels up to the radiator, Angled Valves will work best.
Pipework coming out from the wall + radiator connections on the underneath side = Corner Valves (recommended) or Angled Valves. You can also use Angled valves if you would like the valves to face forward.
Ensure you check with your plumber or installer to make sure you are using the correct valves. Need help? Contact our sales team today? 01257 452 879
