Aura 3 Column Vertical Radiator 1800mm x 515mm White

Three Column Vertical Design

The three-column construction gives this Aura radiator its traditional column radiator appearance, while the vertical 1800mm format makes use of available wall height. At 515mm wide, it offers a taller alternative to horizontal column radiators where the wall layout allows for a vertical installation.

The white finish provides a simple, neutral appearance that can be used across a range of interior styles. The displayed finish may vary slightly depending on lighting and screen settings, so refer to the product images when comparing the colour.

Dimensions & Pipe Centres

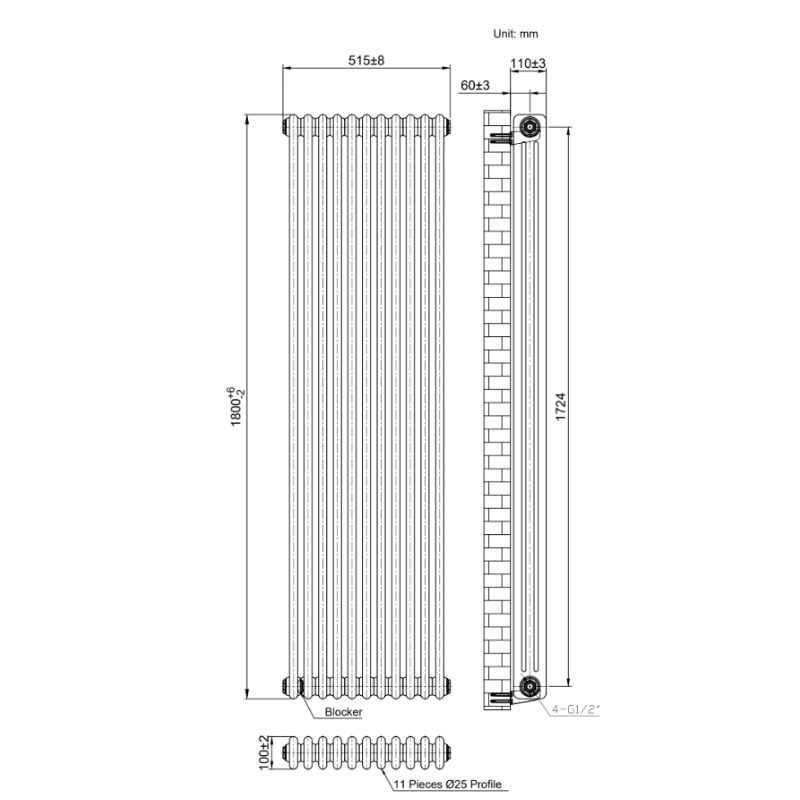

The radiator measures 1800mm high x 515mm wide, with a wall-to-face depth of 114mm. The pipe centres are 595mm, while the wall-to-pipe-centre measurement is 63mm. These measurements should be checked against the existing pipework before ordering, particularly when replacing an existing radiator.

The Aura 3 Column Vertical Radiator 1800mm x 515mm White is designed for central heating and should be installed by a qualified plumber or heating engineer. The correct valve configuration depends on the position of the pipework and the radiator connections, so confirm the requirements with your installer before purchasing valves.

47kg Radiator & Matching Feet

This radiator weighs 47kg. The product page recommends slip-on feet for radiators over 20kg when they are being installed on a stud wall. The Aura 3 Column Radiator Feet Pair White is designed specifically for Aura 3 Column Radiators and is supplied as a pair with four fixing bolts. The feet provide additional floor stability and are designed to work alongside the supplied wall brackets.

For other compatible options, you can also browse the full radiator feet range. Radiator feet are not universal, so always check compatibility with the specific radiator before ordering.

Central Heating & Valve Selection

This three-column vertical radiator is designed for central heating systems. Valve selection depends on how the pipework reaches the radiator. Floor pipework with side connections can require angled valves, while straight valves may be suitable where the pipework connects underneath. Where pipework comes through the wall, corner or angled valves may be appropriate depending on the connection arrangement.

Always check the valve configuration and pipe measurements with your plumber or heating engineer before installation.

Check the Required Heat Output

The 6008 BTU output should be compared with the heat requirement of the room rather than selected based on radiator size alone. Room dimensions, insulation, windows and other heat-loss factors can affect the output required. Use the TRH BTU Calculator before ordering to help establish the appropriate radiator output.

5 Year Manufacturer’s Warranty

The Aura 3 Column Vertical Radiator 1800mm x 515mm White comes with a 5-year manufacturer’s warranty. Refer to the manufacturer’s warranty terms for the conditions and coverage applicable to the product.

Other 1800mm x 515mm Finishes

If you want the same radiator size with a different finish, the Aura 3 Column Vertical Radiator 1800mm x 515mm is also available in Anthracite and Raw Metal. These variants provide the same 6008 BTU / 1760W listed heat output, allowing you to compare the finish without changing the radiator dimensions.

• Aura 3 Column Vertical Radiator 1800mm x 515mm Anthracite
• Aura 3 Column Vertical Radiator 1800mm x 515mm Raw Metal

For more sizes and styles, explore the full Vertical Column Radiators range.
