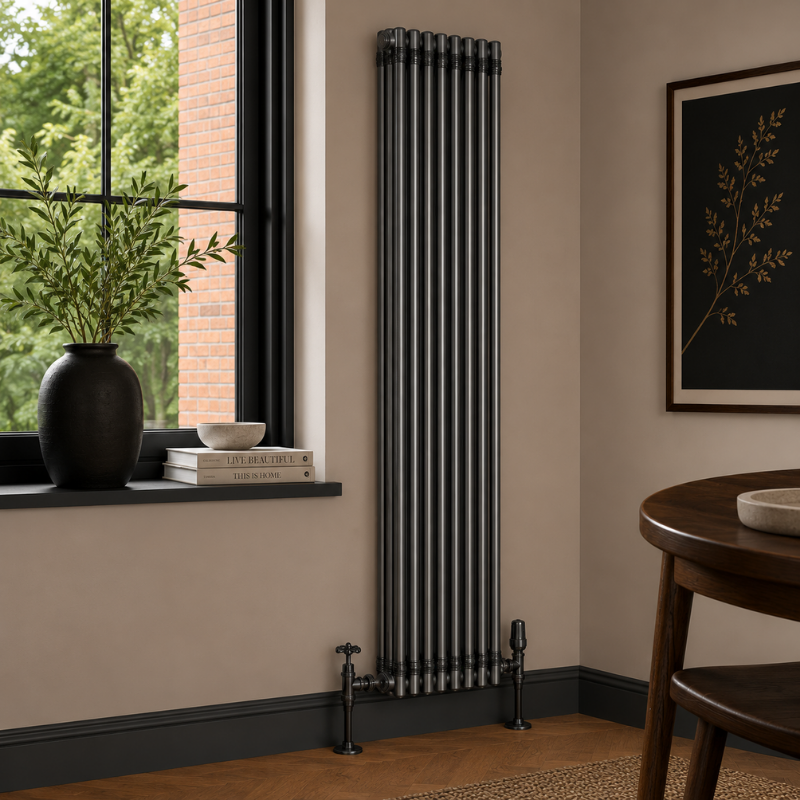

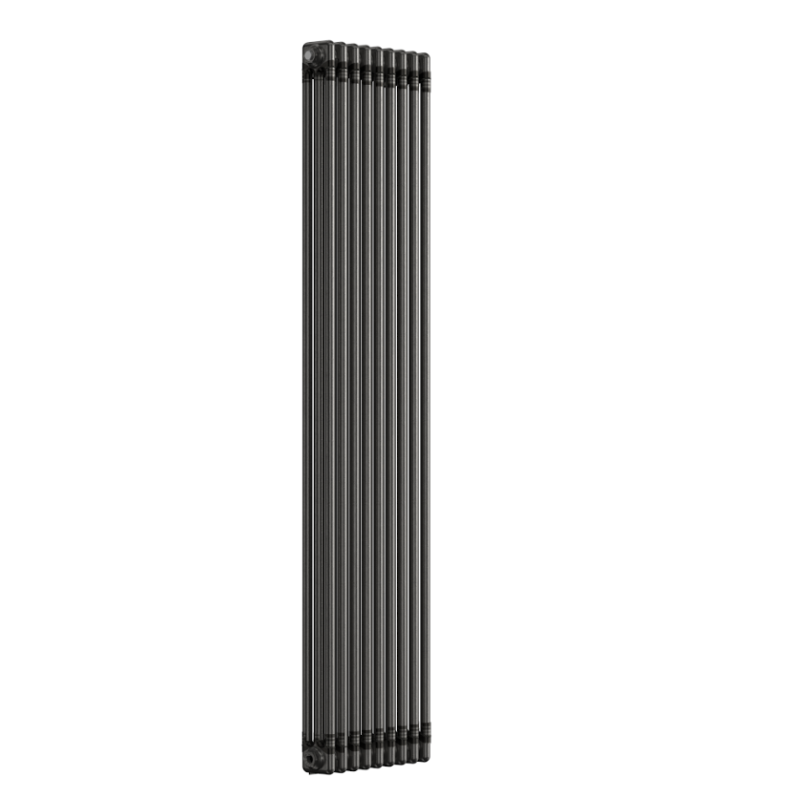

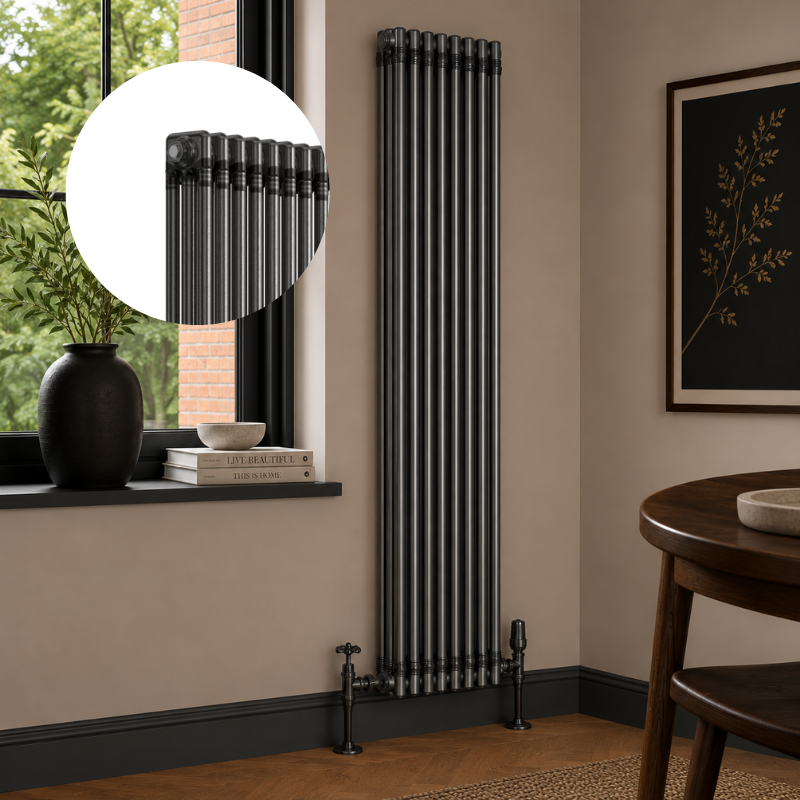

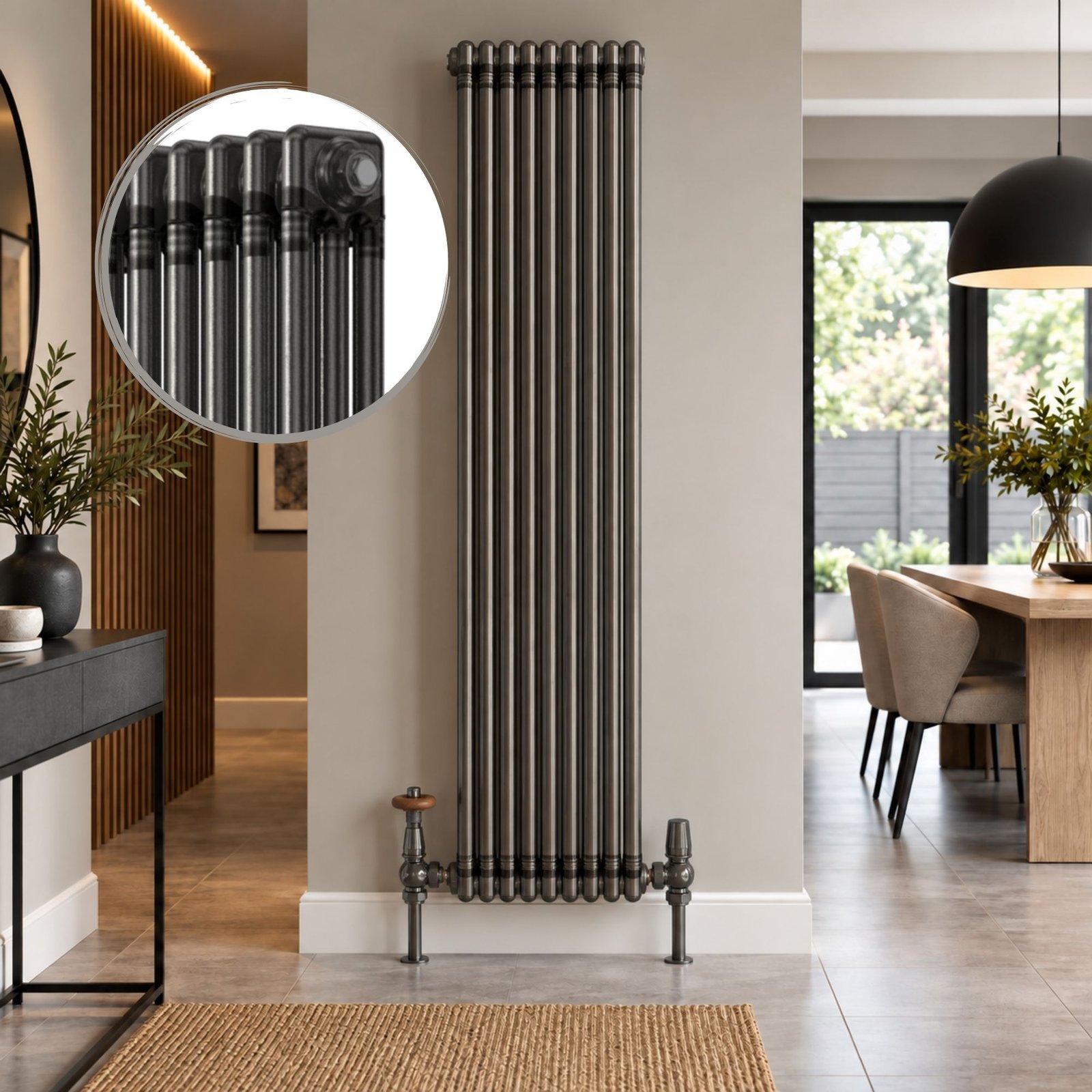

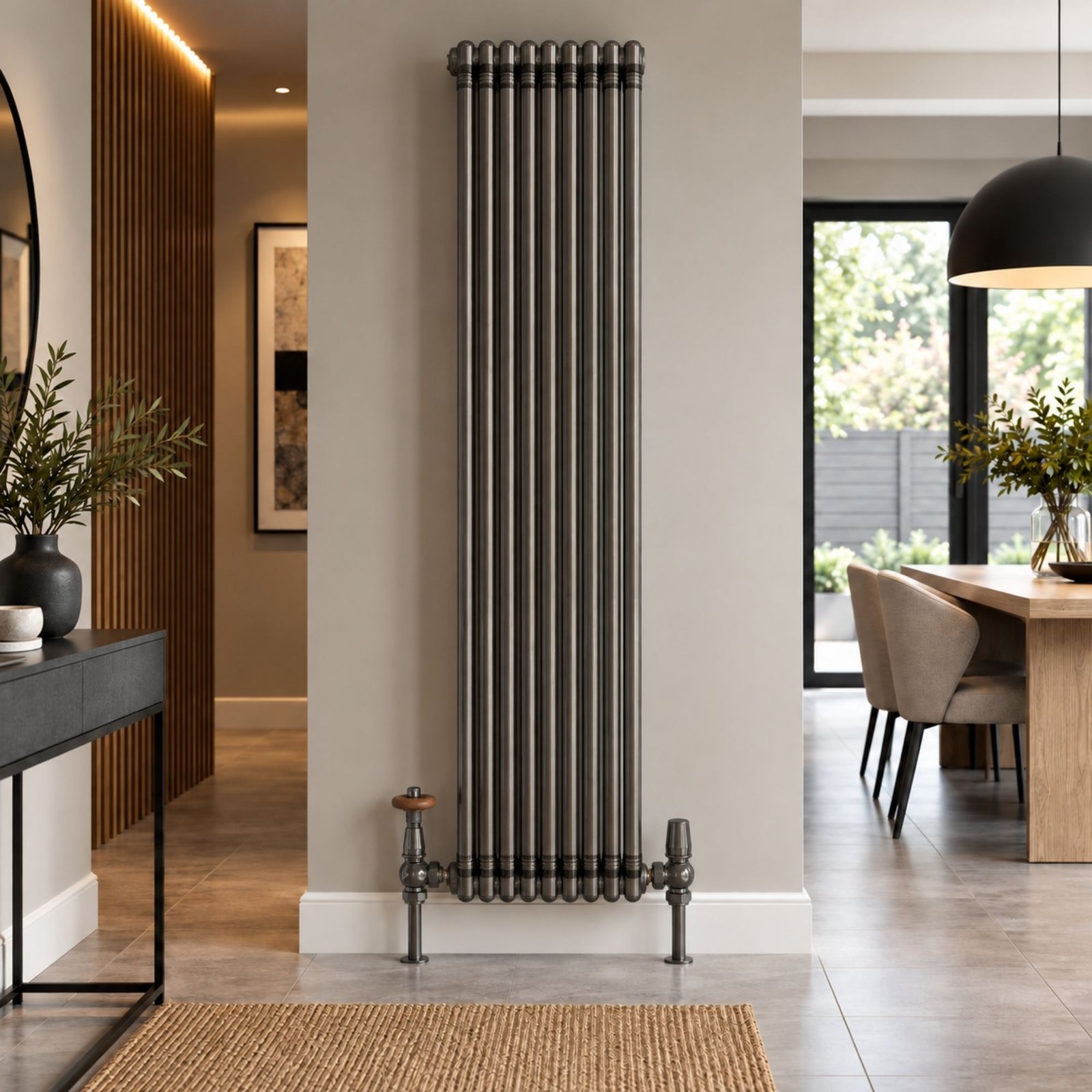

Aura 3 Column Vertical Radiator 1800mm x 425mm Raw Metal

Classic 3 Column Vertical Design

The three-column construction gives the Aura radiator its traditional column radiator profile, while the 1800mm vertical orientation makes use of available wall height rather than requiring a wide horizontal position. At 425mm wide, it can be considered where vertical wall space is available and horizontal space needs to be planned carefully. Always check the available wall dimensions and required heat output before choosing a radiator.

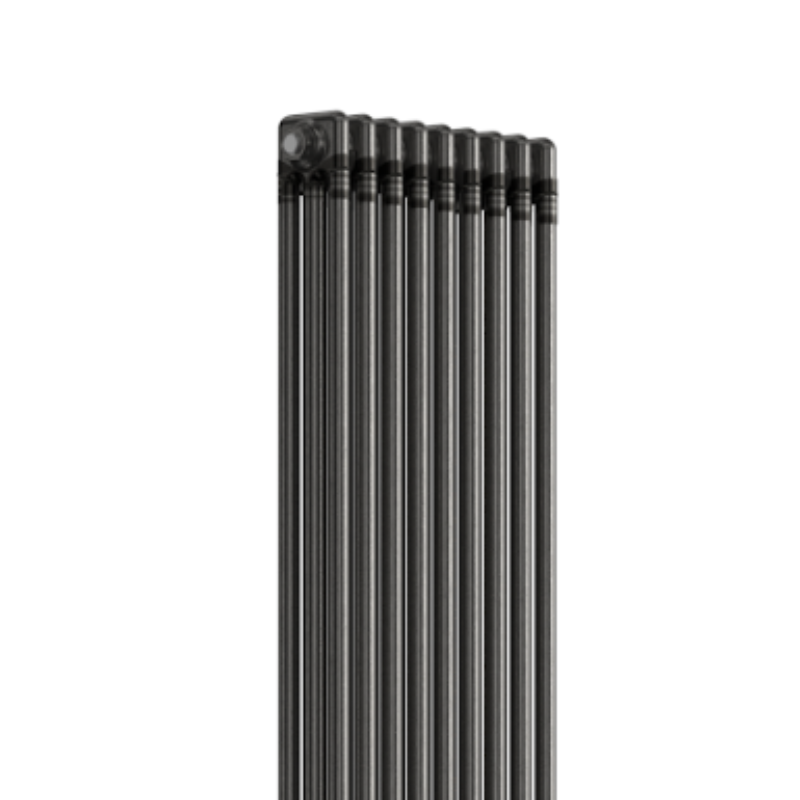

Raw Metal Finish

The Raw Metal finish has an uncoated industrial appearance that highlights the radiator’s metal construction. Because the finish is left uncoated, it should be sealed or lacquered after installation to help protect the surface from oxidation and rust. The appearance of the finish may vary slightly depending on lighting and screen settings, so the product images should be used when assessing the finish.

Dimensions & Installation

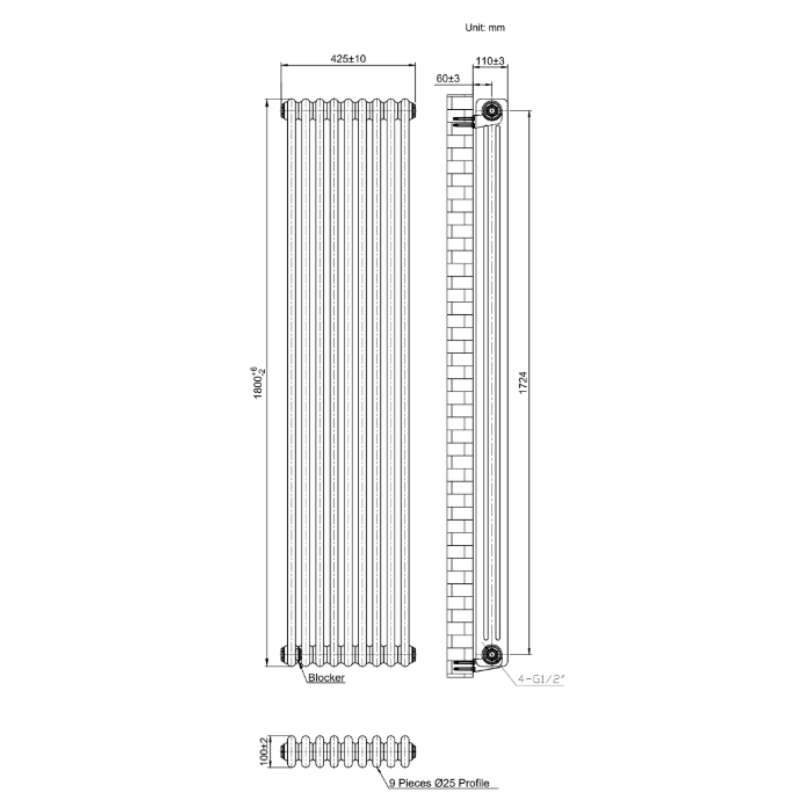

The radiator measures 1800mm high x 425mm wide, with a depth from the wall to the front face of 114mm. The pipe centres are 505mm, while the wall-to-pipe-centre measurement is 63mm. These measurements should be checked against the existing pipework before replacing a radiator or planning a new installation.

The Aura 3 Column Vertical Radiator 1800mm x 425mm Raw Metal is designed for central heating and should be installed by a qualified plumber or heating engineer. The required valve type depends on how the pipework approaches the radiator. Check the connection arrangement with your installer before ordering valves.

Radiator Weight & Matching Feet

At a supplied weight of 40kg, this radiator is a substantial 3-column model. The product page recommends slip-on feet for radiators weighing over 20kg when installing onto a stud wall. The Aura 3 Column Radiator Feet Pair Raw Metal is designed specifically for Aura 3 Column Radiators and is supplied as a pair with fixing bolts. The feet provide additional floor stability and are designed to be used alongside the supplied wall brackets.

If you are looking for other options, you can also view the full radiator feet range. Feet are not universal, so check compatibility with the specific radiator before purchasing.

Central Heating & Valve Selection

This radiator is designed for central heating systems. Valve selection depends on the position and direction of the pipework. Floor pipework with side radiator connections will generally require angled valves, while floor pipework connecting underneath can use straight valves. Where pipework comes through the wall, corner or angled valves may be appropriate depending on the connection position.

Always confirm the valve configuration and pipe measurements with your plumber or heating engineer before ordering.

5 Year Manufacturer’s Warranty

The Aura 3 Column Vertical Radiator 1800mm x 425mm Raw Metal comes with a 5-year manufacturer’s warranty. Check the manufacturer’s warranty terms for the conditions and coverage applicable to the product.

Other 1800mm x 425mm Finishes

The same 1800mm x 425mm Aura 3 Column Vertical Radiator is also available in other finishes. The alternative versions have the same listed 5087 BTU / 1490W output, allowing customers to compare the finish without changing the radiator size.

• Aura 3 Column Vertical Radiator 1800mm x 425mm Anthracite
• Aura 3 Column Vertical Radiator 1800mm x 425mm White

For more sizes and finishes, explore the full Vertical Column Radiators range.
