2 Column Radiators: The Complete UK Buyer’s Guide For Style, Heat Output And Value
2 Column Radiators: The Complete UK Buyer’s Guide For Style, Heat Output And Value
2 column radiators deliver a timeless look, strong heat output, lots of size options and finishes, and they work brilliantly in both period and modern homes. This guide explains how they work, how to size them in BTU, the Delta-T ratings you must know, installation tips, and the best places to use them.
What is a 2 column radiator?
A column radiator uses rows of vertical tubes that hot water flows through. A 2 column version has two tubes joined front-to-back, giving a slim profile with plenty of surface area for heat transfer. The design encourages even heat distribution and comes in compact horizontal or space-saving vertical formats. Industry guides highlight the combination of classic styling and effective heating, with a wide set of sizes and finishes to suit most rooms.
Why homeowners pick them
Timeless design that suits period details and minimal interiors alike.
Good heat coverage thanks to the exposed surface area and convection channels between the columns.
Flexible formats for hallways, bay windows, kitchens, bedrooms and open-plan spaces.
Column vs panel radiators
You’ll see mixed claims online. Some trade articles say columns distribute heat very evenly, while others note that a flat panel can show a higher listed BTU at the same size. The truth is simple. Both types can heat a room well if sized correctly, and choice often comes down to look, wall space and pipework.
Finishes and where they work best
Textured White clean and bright. Works in smaller rooms to keep the space feeling open.
Anthracite modern and architectural. Great as a feature on pale walls.
Raw Metal effect industrial character for lofts and period renovations.
Tip: Darker finishes can appear smaller visually on light walls and make a strong feature behind sofas or dining tables.

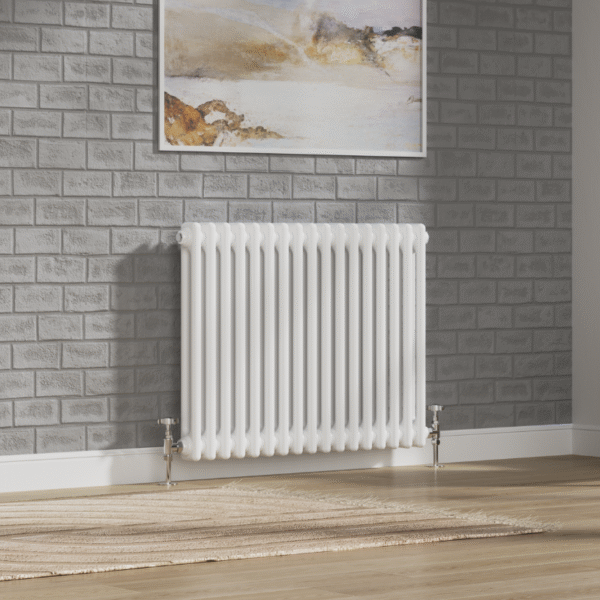

TRH 2 Column Horizontal Radiator 600mm x 785mm White
In stock
- 🔥 BTU Output: 2251
- ⚡ Watt Output: 748
- 🛡️ Warranty: 5 Years

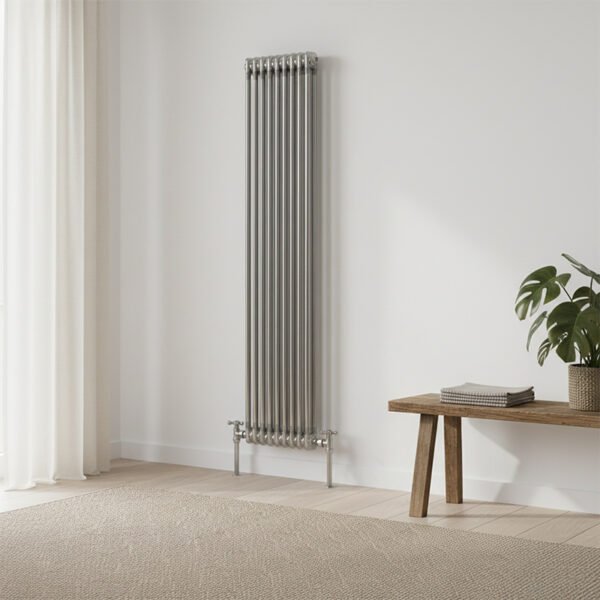

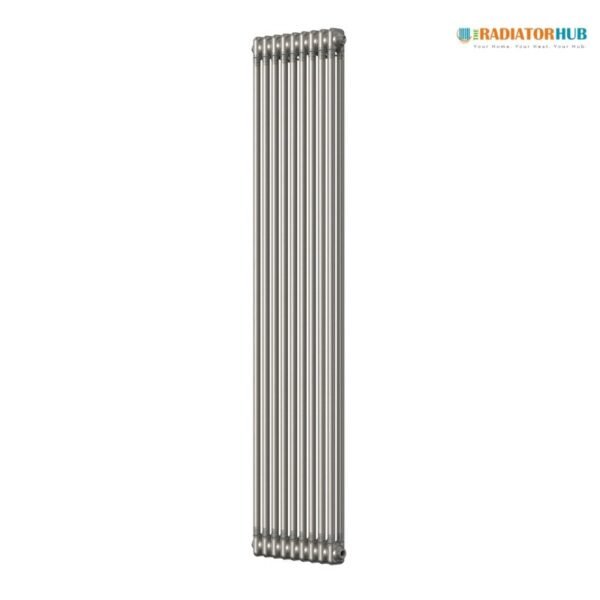

TRH 2 Column Vertical Radiator 1800mm x 425mm Raw Metal
In stock
- 🔥 BTU Output: 3444
- ⚡ Watt Output: 1009
- 🛡️ Warranty: 5 Years

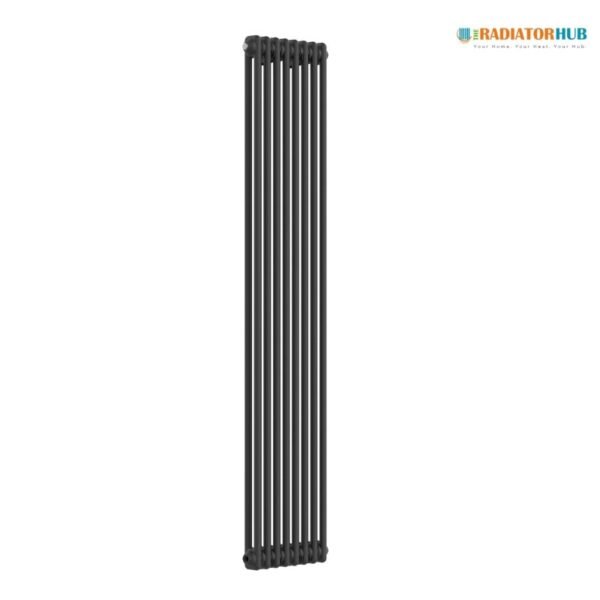

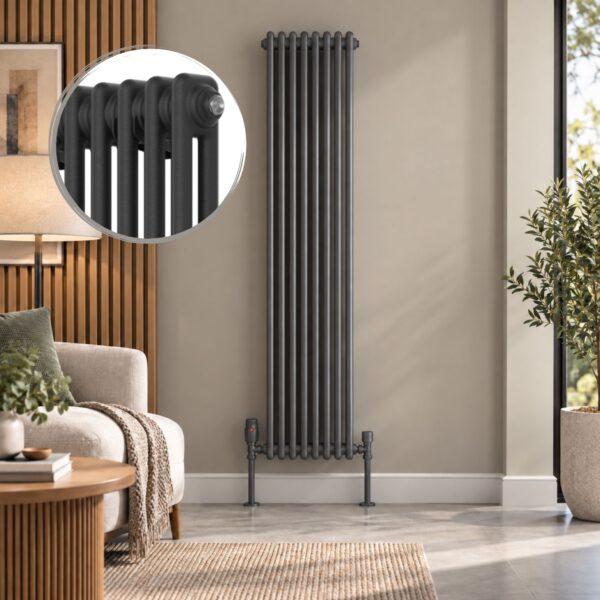

TRH 2 Column Vertical Radiator 1800mm x 380mm Anthracite
In stock
- 🔥 BTU Output: 3062
- ⚡ Watt Output: 897
- 🛡️ Warranty: 5 Years
Sizing your 2 column radiator the right way
1) Calculate the room BTU requirement
Use a BTU calculator and enter room length, width and height. Good calculators also factor windows, insulation and exposure.
Target: Choose radiators whose combined BTU at ΔT50 meets or slightly exceeds the calculator result.
2) Check the Delta-T rating (ΔT50 vs ΔT60)
Most UK listings now quote ΔT50 because it matches modern boiler systems. Older literature and some suppliers still show ΔT60. If you size from the wrong rating you can under or over spec the radiator.
Quick conversion: If a model is quoted at ΔT60 and you want ΔT50, multiply by 0.789. Example: 5,000 BTU at ΔT60 ≈ 3,945 BTU at ΔT50.
3) Decide layout
One larger radiator is simple and neat.
Two smaller radiators can spread heat more evenly in long rooms or conservatories.
Pro tip: If you’re between two sizes, go slightly higher in BTU and fit quality TRV valves to control the room.
Vertical vs horizontal 2 column radiators
Vertical: Brilliant when wall width is tight. Adds height and a clean feature line.
Horizontal: Classic under-window solution. Comfortable convection flow and easy furniture planning.
Both formats are available with the same finishes and guarantees in TRH’s range.
Placement and installation guidelines
Keep 100-150 mm from the floor for airflow and easier valve access.
Check wall strength. Use correct fixings for plasterboard or consider feet if the wall is lightweight.
Avoid blocking with heavy curtains or furniture. Keep the front and sides clear so convection can do its job.
Always pressure test, balance and bleed the system after fitting.
For complex swaps or re-piping, use a qualified heating engineer.
Running costs and efficiency tips
Correct sizing is the number one efficiency gain. An undersized rad runs hotter for longer.
Use TRVs to limit temperature per room.
Balance the system so every radiator heats evenly.
Keep radiators clean and dust-free inside and out to maintain airflow and performance.
Who should choose a 2 column radiator?
Pick 2 column models if you want:
A classic look that still feels modern
Strong all-round heat with lots of size options
Vertical choices for tight wall spaces
A feature finish like Anthracite or Raw Metal
If ultra-flat, minimal lines are your priority or you need the highest listed BTU in a very small footprint, compare with a compact flat panel at the same BTU rating.
TRH recommendations by room
Living room: Anthracite vertical as a design feature, or a wide horizontal under the bay window.
Kitchen diner: Vertical near the dining space to free up low wall runs for units.
Hallway: Slim vertical to keep circulation clear.
Bedroom: White horizontal for calm, soft visuals.
Explore sizes and finishes: TRH 2 Column Radiators
Frequently asked questions
Are 2 column radiators efficient?
Yes, when sized to the correct BTU and run at modern ΔT50 conditions. Column designs offer ample surface area for comfortable, even warmth. Panel rads can show higher listed BTUs at the same size, so compare outputs and choose what suits your space and style.
What does ΔT50 mean and why does it matter?
It’s the temperature difference between average water in the radiator and the room. UK outputs are usually quoted at ΔT50. If a spec shows ΔT60, convert so you don’t under-size the radiator.
How high should my radiator be off the floor?
Aim for 100 to 150 mm for airflow and access.
Do vertical 2 column radiators heat as well as horizontal?
Yes, provided BTU output matches the room requirement. Choose format by wall space and layout.
What valves should I use?
Quality TRV valves on most rooms. Match finish to the radiator for a clean look.
Ready to upgrade your heating with a classic that performs like a modern?
Explore TRH 2 Column Radiators in White, Anthracite and Raw Metal with multiple sizes and fast UK delivery.
